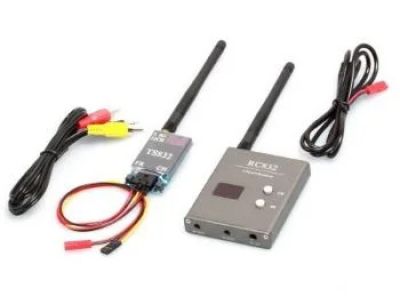

RC832 Receiver and TS832 Transmitter 32Ch 5.8G 600mW Wireless AV for FPV

Description: FPV 5.8G 600mW A/V 32CH Transmitting/Receiving System TS832 + RC832 RP-SMA. THIS IS THE NEW 32-CHANNEL EDITION OF 5.8G 600mW A/V WIRELESS SYSTEM. Features: 48 channels choice to get the best transmitting quality. Compatible with A,B,E and F frequency bands Smaller size with lighter weight. 48 CH compatible to all FPV 5.8g receivers. 5.8G 600mW 48 Channels AV wireless FPV  transmitter Super small 200mA current for 600mW wireless transmitter power. 600mW transmitter power assure 5KM distance in open area, 5-8 KM is available if work with the bigger gain antenna. Package Included: 1 x transmitting unit (TX) 1 x receiver (RX) 2 x antennas (2db) 1 x basic wires set TS832 Specification: Item Name: TS832 transmitter Frequency: 5.8G Power input: 7.4-16V (3S Lipo suggested) Transmitting Power: 600mA Antenna Gain: 2db Working Current: 220mA at 12V Video Format: NTSC / PAL Auto Video Bandwidth: 8M Audio Bandwidth : 6.5M Weight: about 22g Dimension: 54x 32x 10mm(excluding antenna) Connector: transmitter module side RP-SMA jack, antenna RP-SMA plug RC832 Specification: Item Name: RC832 receiver Power Input: 12V Working Current: 200mA max Antenna Impedance: 50O Antenna Gain: 2db Video Impedance: 75O Video Format: NTSC/PAL auto Dimension:  80x 65 x15mm Weight: about 85g Connector: receiver module side RP-SMA jack, antenna RP-SMA plug
